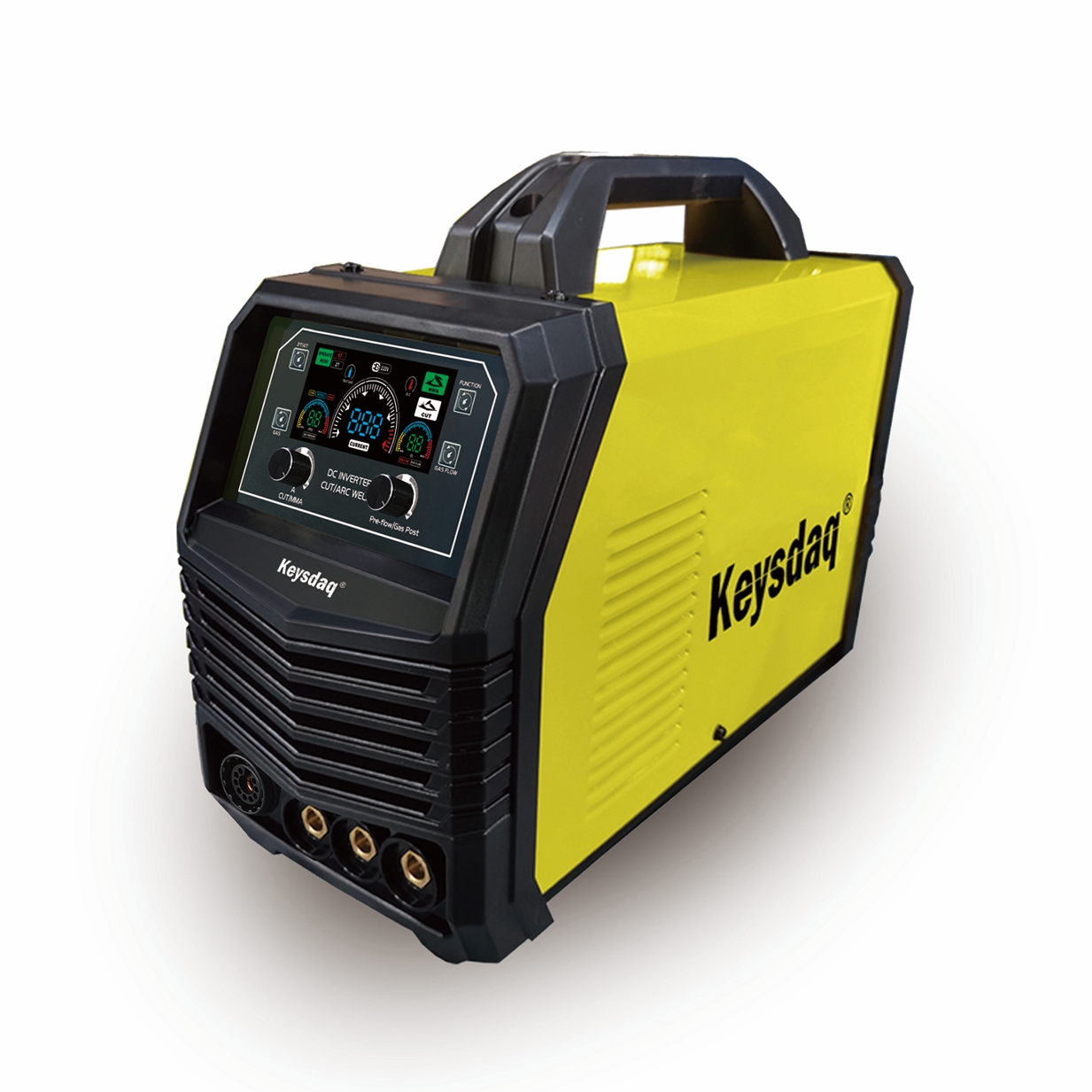

PLASMA CUT/MMA/ TIG HF machine

IGBT inverter technology

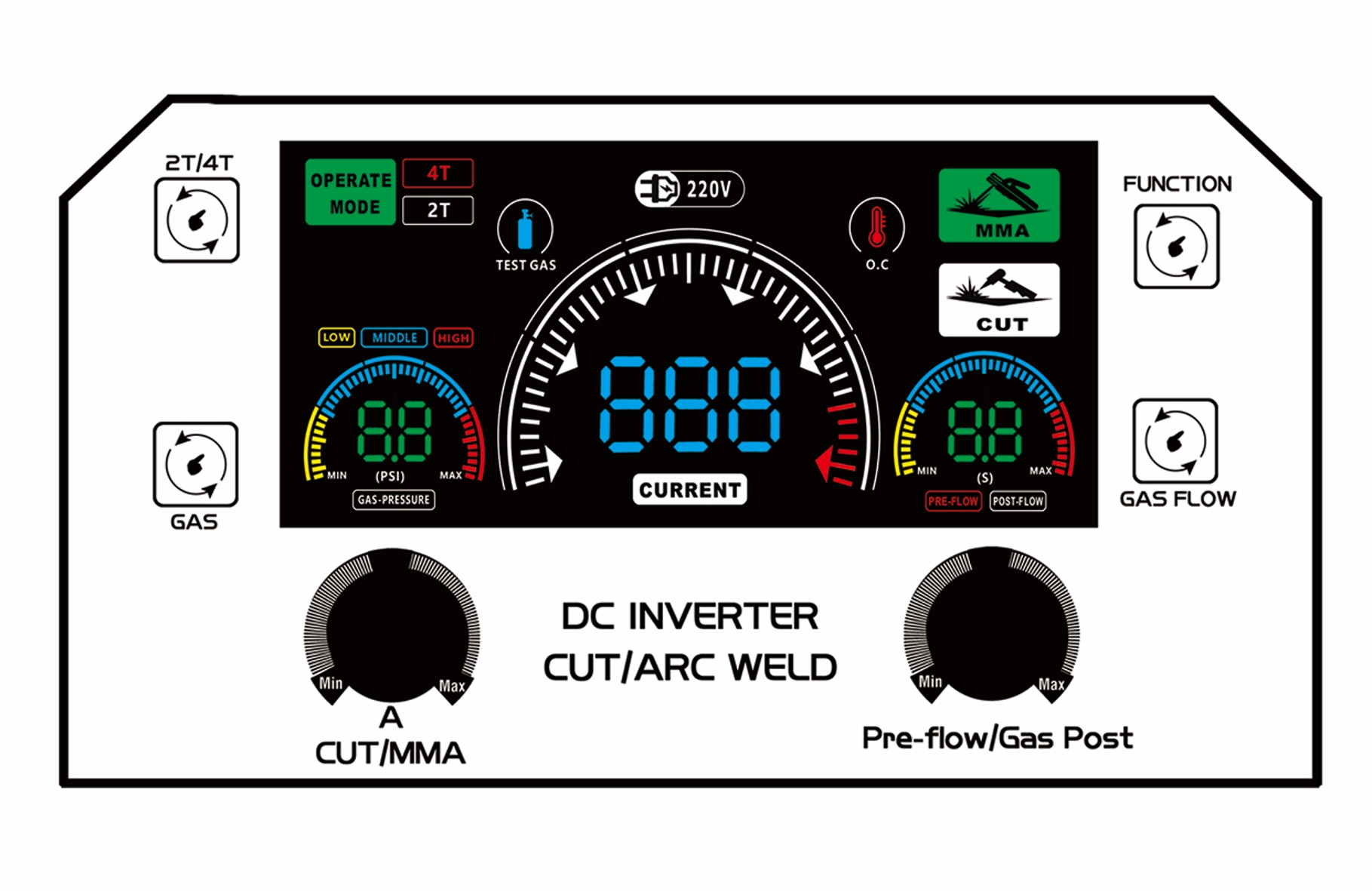

Digital control core for more accurate operation
Plasma cutting is with high frequency cut process
TIG welding is high frequency weld process
MMA weld is also possible for the machine.

Machine works with air compressor high pressure air from 4Mpa
Machine is without pilot arc for arc start and cut work.
TIG weld process is with high frequency for torch switch controlling arc start.

*Machine can be with MMA function for arc weld process (option) for 100A, 120A, 160A machine.

Plasma cut max. working current: 40A
TIG max. working current: 160A
MMA max. working current: 160A

duty cycle: 40%
